48V 100W Brushless Motor Speed Controller for Electric Scooter, Bicycle, e-Bike & Tricycle - Perfect for DIY Electric Vehicle Upgrades and Commuting Solutions

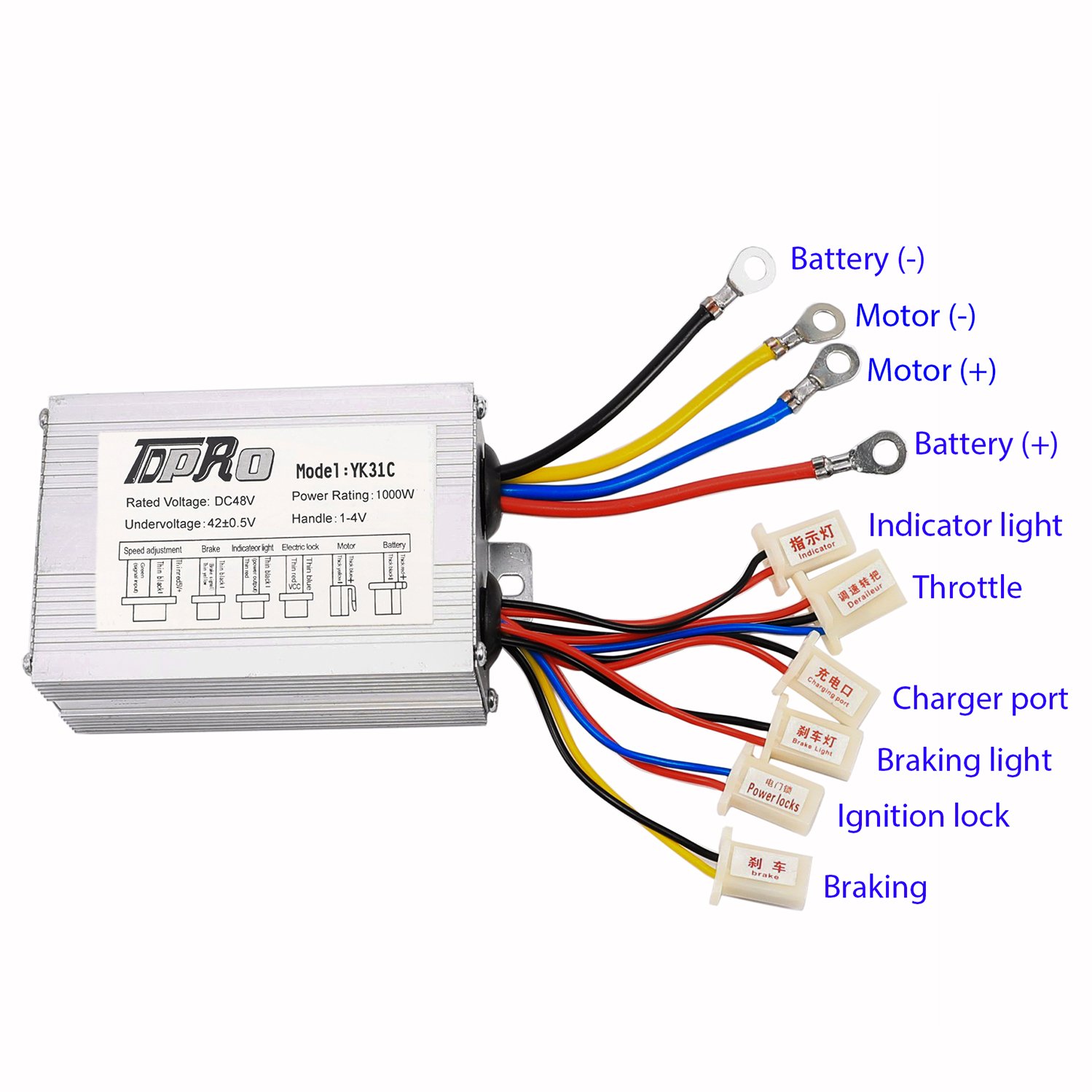

Specifications: Rated voltage: 48V DCMatch motor: 48V 1000 WConversion efficency: 95% Under Voltage Protection: 42±0.5VSpeed regulator (throttle): 1-4 VWiring:This controller has 9 connectors, compatible with many 48V bikes with up to 1000W motors1. Battery / 2. Motor / 3. Brake / 4. Brake light / 5. Indicator light / 6. Ignition lock / 7. Charger port / 8. Derailleur (throttle)These controllers have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally. Besides, this controller have other optional functions, you can hook them up according to your applications.

Rated voltage 48V DC / Match motor 48V 1000 W

Under Voltage Protection 42±0.5V / Speed regulator (throttle) 1-4 V

Fit for 48v 1000w brushed motor

Universal 48v 1000w super power brushed controller

Suitable for electric scooter, e-bike, tricycle, mini bike, pocket bike, go kart, atv, moped
