Waterproof 500W Electric Bike Controller Kit with Durable Display - Compatible with E-Bikes, Perfect for Commuting & Off-Road Adventures

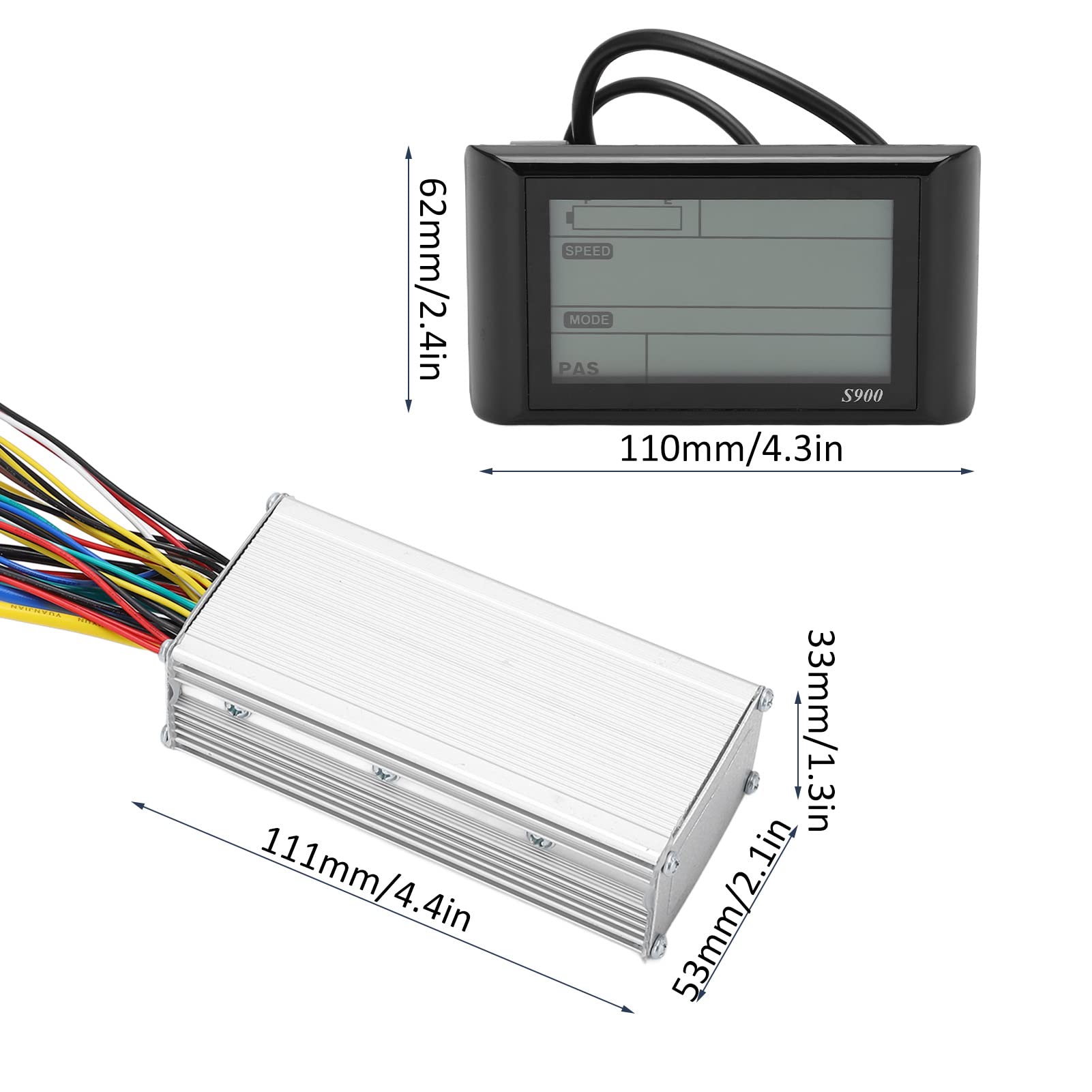

Specification:p class=wang-edit-text>Item Type: Electric Bicycle Controller S900 Instrument KitColor: As Pictures ShownMaterial: Aluminum Alloy + ABS PlasticWeight: Approx.722g/25.2ozController Box Size: Approx. 111x53x33mm/4.4x2.1x1.3in, Meter Size: Approx. 110x62mm/4.3x2.4inController Rated Voltage: DC 36V/48VController Maximum Current: 22AController Speed Setting: 1-4.2VController Brake Input: Low LevelBooster: 1:5Applicable Motor Power: 500WController Wire Color Definition:1. Yellow, Green, Blue Single Big Head Line: Motor Phase Line2. Red-white-black-blue-green-yellow Double Row Six-wire Port: Motor Hall Wire3. Red and Black Single Big Head Line: Power Line4. Red, Blue, Black, Green and Yellow Single-row Five-wire Port: Instrument Line (5pin)5. Black and Yellow Lines (two): Power off Brake Handle Line6. Red and Black White Lines: Throttle Dial Line (3pin)7. Brown, Black and Yellow Wire: Power Sensor Wire (3pin)8. Black and Red Lines (two): Headlight LinesS900 Meter Function Description:1. Display Function: Speed Display, Power-assisted Gear Display, Power Indicator, Fault Prompt, Total Mileage, Single Mileage, Headlight Display, Single Driving Time Display.2. Control and Setting Functions: Power Switch Control, Headlight Switch Control, 6km/h Jog Control, Wheel Diameter Setting, Maximum Speed Setting, Idle Automatic Sleep Time Setting, Backlight Brightness Setting, Voltage Level Setting, Power Assist Sensor Connect.Package List:1 x Controller1 x Instrument 1 x Thumb Throttle1 xSpeed Assist Sensor1 xController Wiring ManualNote:Note that the size of the motor is consistent with the controller kit.

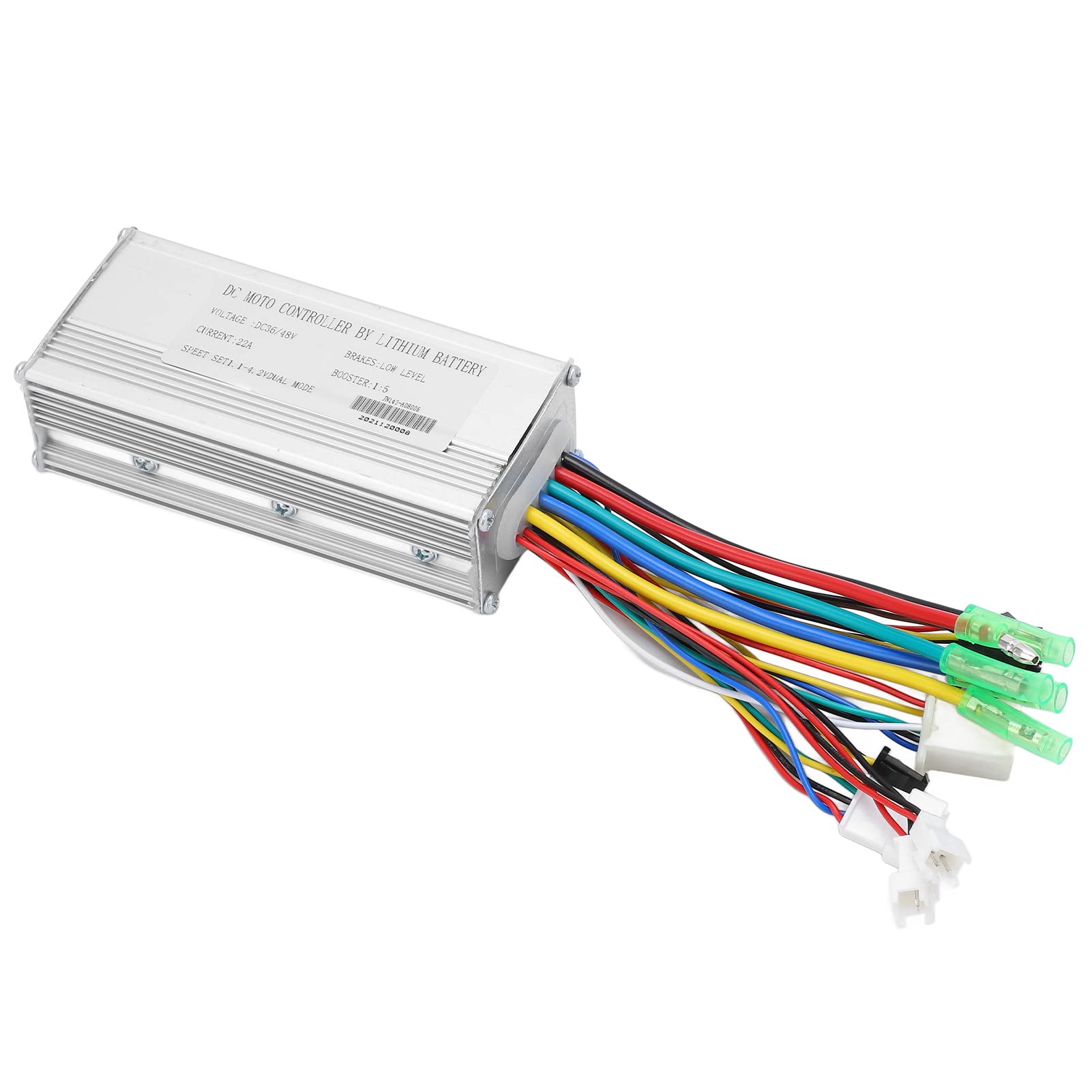

Controller Housing Made of high quality metal with design, it can protect the internal circuit due to good heat dissipation, thus avoiding thermal overload.

Manufacturing Material Using ABS material, it is light, strong and durable, with good toughness and waterproof performance, providing better for the internal circuit.

Widely Used Suitable for 500W motor, DIY electric bicycle, electric vehicle, electric scooter, folding bike, etc. Easy to maintain, electric greatly improves riding fun, for cyclists who like challenge.

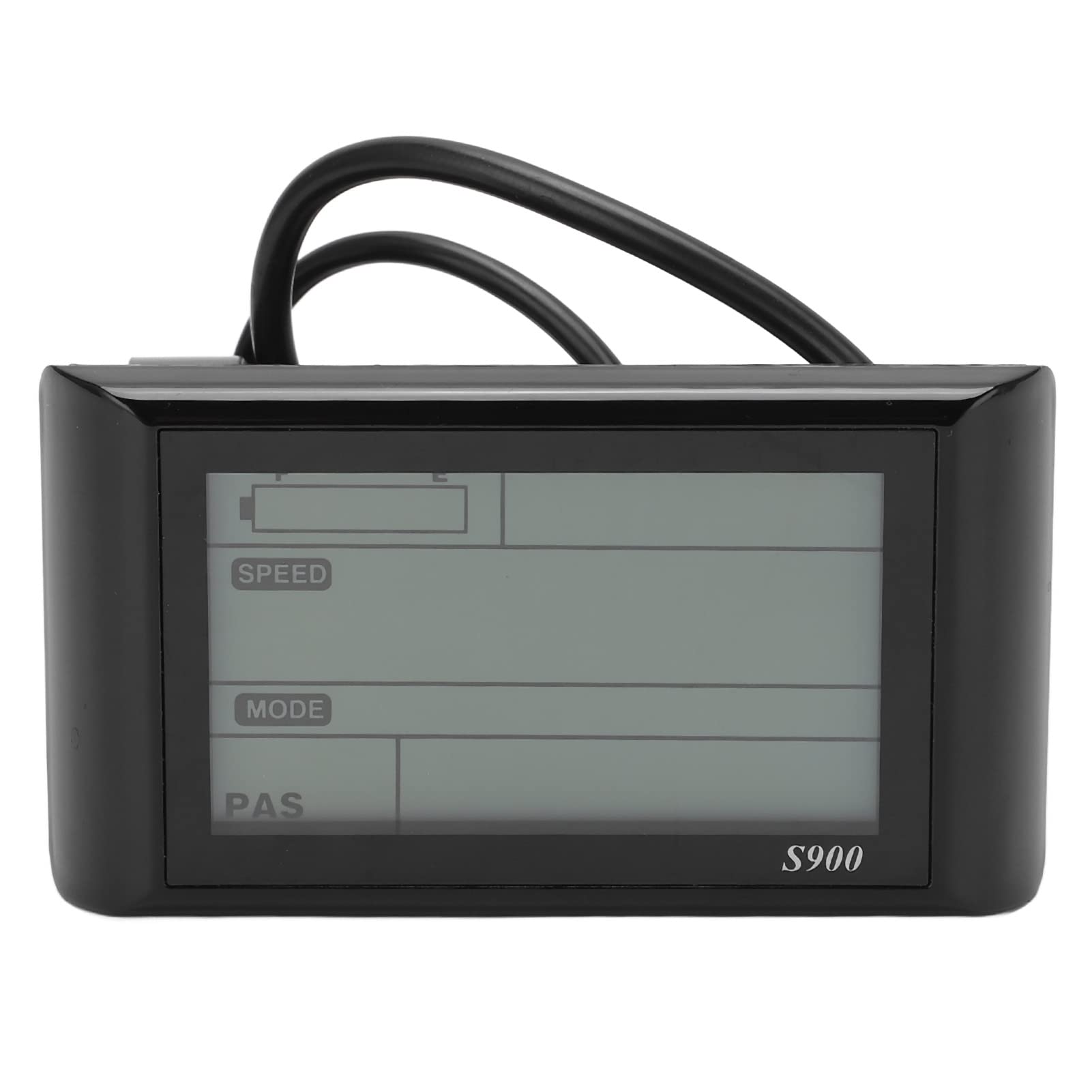

Multiple Functions S900 Display Can be used as trip computer and control the entire system after conversion, compatible with 36V and 48V voltages. Color display makes it easier to view the data on the panel, such as speed display, assist gear Displa

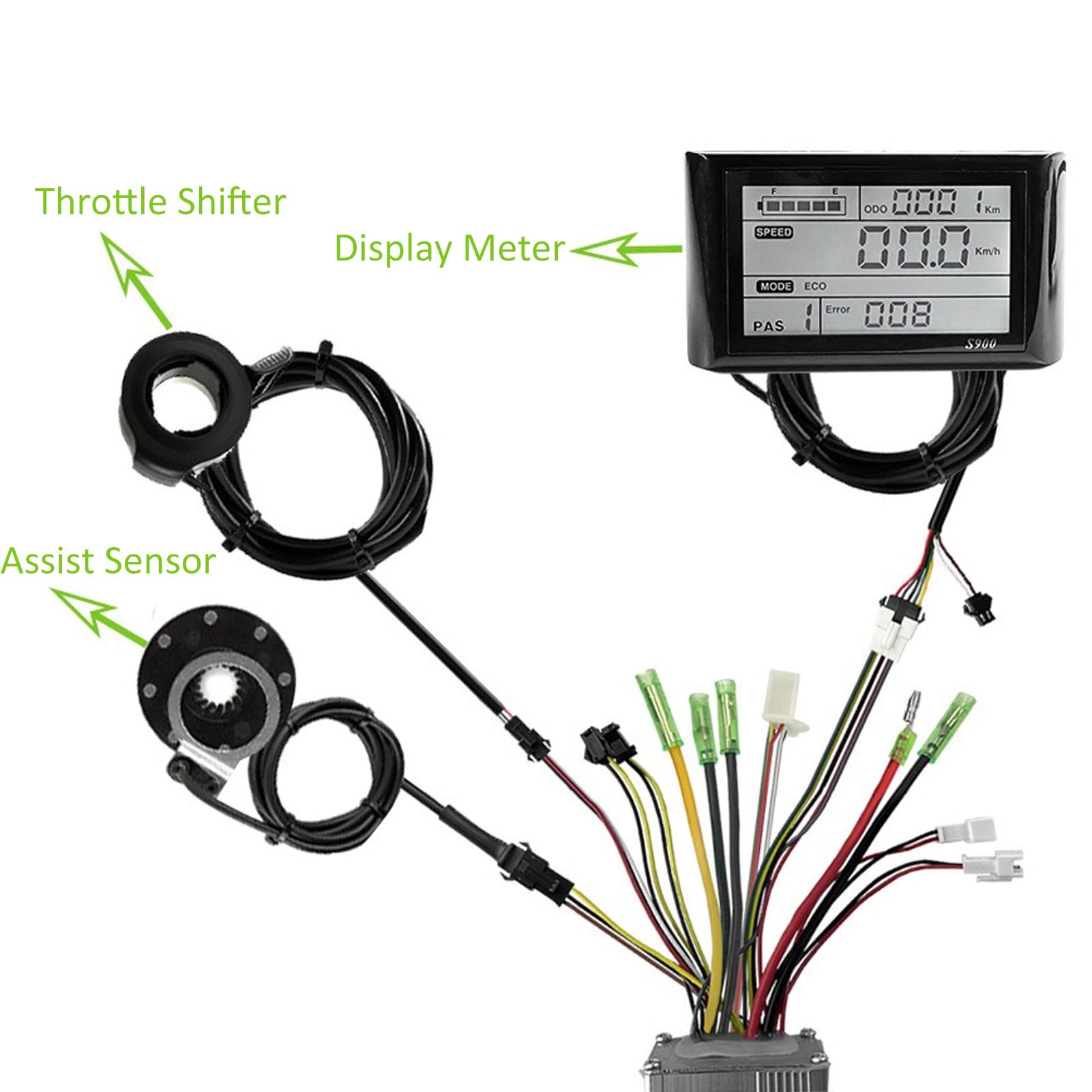

Packing List Electric conversion kit include 22A controller, S900 instrument, 130X thumb throttle, 8C speed assist sensor.
