AMONIDA 250W Rear Wheel Drive Brushless Motorcycle Conversion Kit - Electric Bike & Scooter Upgrade for Commuting & Off-Road Adventures

Specification:Item Type: Electric Rear Drive Motor Wheel KitWeight: Approx. 6650g / 234.6ozMaterial: Stainless Steel, Aluminum Alloy, ABS PlasticMotor Wheel Type: Rear Drive Motor Wheel (Waterproof Connector)Motor Rated Voltage: 36VMotor Rated Power: 250wMotor Speed: About 25-28km/HMotor Speed: 207-270RpmMotor Torsion (N.M): 29-31.2 N.MMotor Size (mm): Approx. 135-142mm / 5.3-5.6inMotor Matching Controller Current: 15AMotor : P19DMotor Torsion Arm: M14Applicable Motor Brake Disc: Approx. 160mm / 6.3inMotor Brake Type: Universal V Brake, Disc Brake Motor Wheel Position: Rear WheelMotor Structure: Brushless Gear MotorMotor Magnet Height: 24HNumber Of Magnetic Steel Poles Of Motor: 20Motor Operating Temperature: -20℃ - 45℃Controller Connector Type: Common Connector (Except Motor Waterproof Connector)Controller Rated Voltage: DC 36V 48VController Rated Current: 7AMaximum Controller Current: 15±1AController Speed Setting: 1-4.2VController Brake Input: Low LevelController Low Voltage Protection: DC 30/40±0.5VController Line Color Definition:1. Black Single Big Head Wire: Motor Wire (Waterproof Joint)2. Red and Black Single Large Head Cable: Power Cable3. Red Blue Black Green Yellow Single Row Five Wire Port: Panel Wire (5pin)4. Red and Blue Lines (Two): Power Off Brake Handle Line5. Red, Black and White Line: Thumb Throttle (3pin)6. Brown Black Yellow Wire: Power Assist Sensor Boost Sensor Wire (3pin)LCD7U Panel Function Description: up button, switch button, down button, power assist sensor , battery capacity indication, function, one way time, total travel time, throttle display, 6km / h thrust assist system, riding speed (Metric), riding speed (English), maximum speed, average speed, distance (Metric), distance (English), travel distance, total distance, battery voltage, brake display, backlight and headlamp

Manufacturing Material: The controller shell is made of high quality metal with design. Due to its good heat dissipation function, it can the internal circuit and avoid thermal overload. The instrument is made of high quality ABS plastic ma

LCD Panel Screen: When riding a , the product will display many useful data on your , such as power display, backlight display, headlamp display, brake display, temperature, one way time, total travel time, current speed, average speed, maxi

Easy Maintenance: Suitable for , mountain bike, lithium battery modified electric vehicle with flying motor wheel, DIY Electric , electric vehicle, electric scooter, folding car, etc; It is easy to maintain. The conversion motor of el

Stable Performance: The aluminum alloy is selected and treated with fine technology, which effectively enhances the edge of the , looks light and high end , has strong bearing capacity, and is far more comfortable than other types of moto

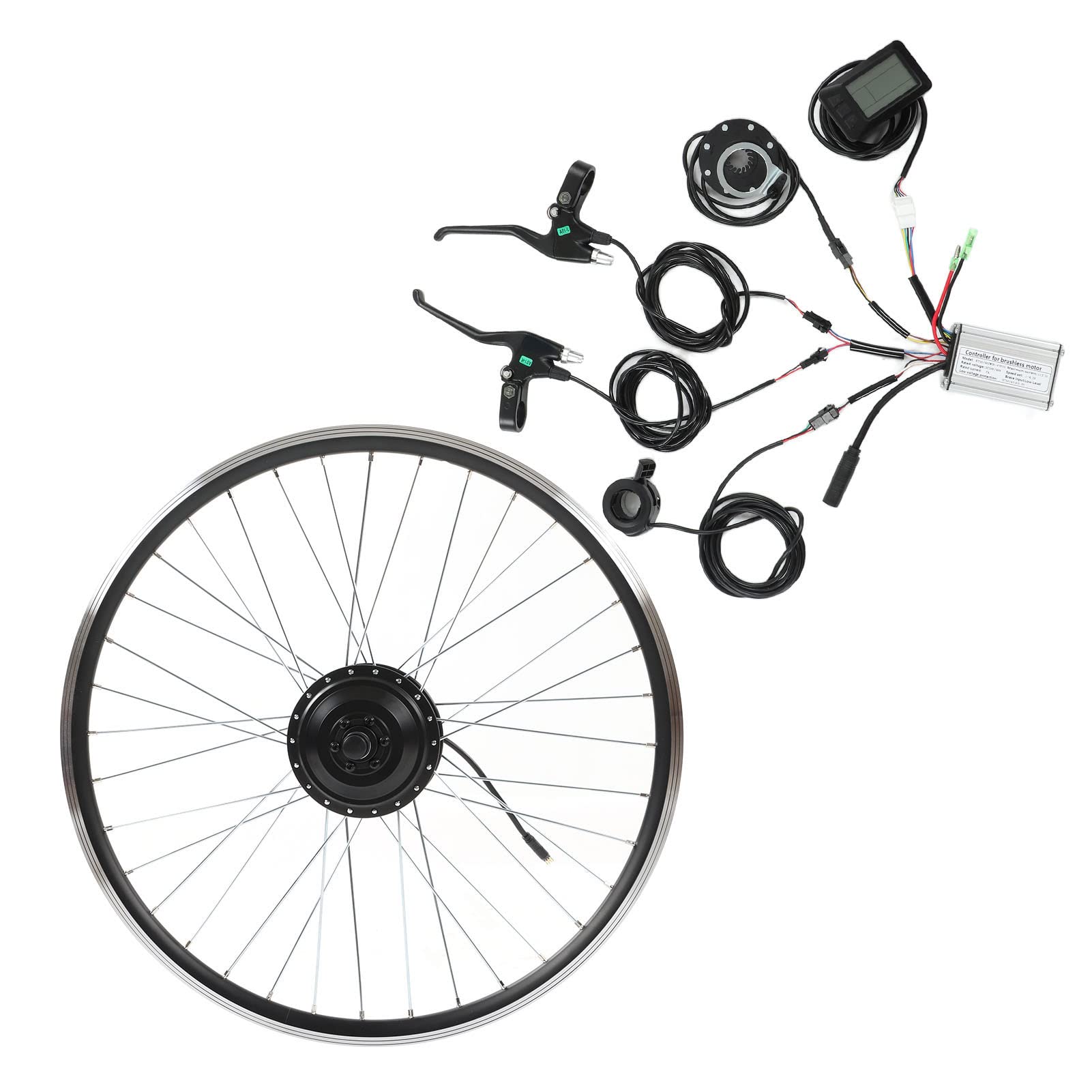

Included Accessories: 26inch lithium refit rear drive kit contains 36V 500W rear drive motor wheel, 15A controller, LCD7U meter, thumb throttle, 8 magnetic , a pair of power off brake handle, controller box and manual.
