24V 250W Brush Speed Motor Controller for Electric Scooter, Bicycle, e-Bike & Tricycle - Perfect for DIY Electric Vehicle Upgrades and Repairs

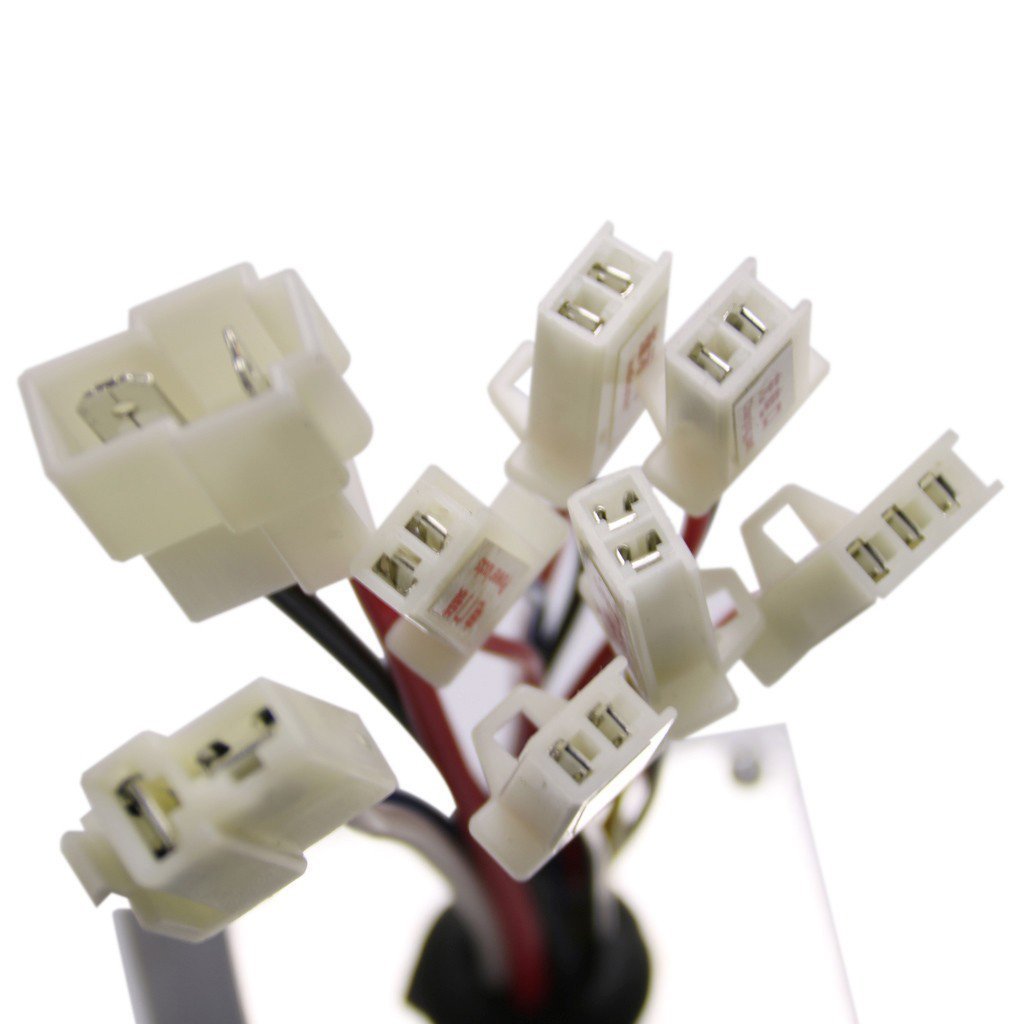

Specifications: Rated voltage: 24V DCMatch motor: 24V 250 WConversion efficency: 95% Under Voltage Protection: 20±0.5VSpeed regulator (throttle): 1-4 VWiring:This controller has 8 connectors, compatible with many 24V bikes with up to 250W motors1. Battery / 2. Motor / 3. Brake / 4. Brake light / 5. Indicator light / 6. Ignition lock / 7. Charger port / 8. Derailleur (throttle)These controllers have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally. Besides, this controller have other optional functions, you can hook them up according to your applications.

Rated voltage 24V DC / Match motor 24V 250W

Under Voltage Protection 20±0.5V / Speed regulator (throttle) 1-4 V

Fit for 24v 250w brushed motor

Controller adaptors waterproof design

Suitable for electric scooter, e-bike, tricycle, mini bike, pocket bike, go kart, atv, moped
